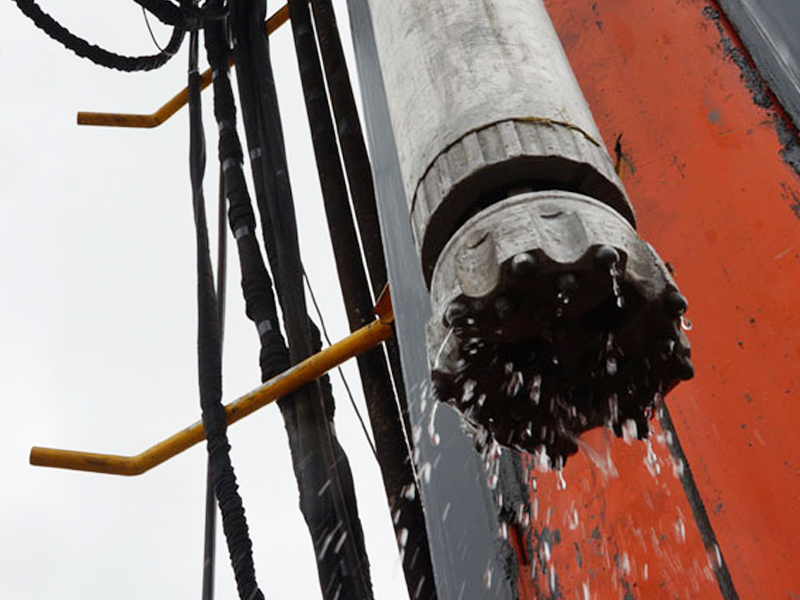

WATER HAMMER
WATER HAMMER & DRILLING SYSTEM
| Guide Selection | |||||
|---|---|---|---|---|---|
| Product | Hole Size [Φ(mm),inch(˝)] |
Drill Bit
Type:Concave-Conical [Φ(mm),inch(˝)] |
Water Hammer [Φ(mm)] |
Air Rod [Φ(mm)] |
Water Pump [LPM:L/min] |
| 25WH | Ø77mm (3˝) | Ø77mm (3˝) | Ø70mm HR025 | Ø65mm HR025-HNC |
HWP-290 DIESEL 290LPM @200bar |
| 35WH | Ø102mm (4˝) | Ø102mm (4˝) | Ø88mm HR035 | Ø85mm HR035-NC23 |
HWP-290 DIESEL 290LPM @200bar |
| 40WH | Ø114mm (4 1/2˝) | Ø114mm (4 1/2˝) | Ø102mm HR040 | Ø95mm HR040-HNC26 |
HWP-350 DIESEL 350LPM @200bar |
| Ø127mm (5˝) | Ø127mm (5˝) | ||||
| 50WH | Ø127mm (5˝) | Ø127mm (5˝) | Ø116mm HR050 | Ø110mm HR050-NC31 |
HWP-420 DIESEL 420LPM @200bar |
| Ø140mm (5 1/2˝) | Ø140mm (5 1/2˝) | ||||
| 60WH | Ø152mm (6˝) | Ø152mm (6˝) | Ø136mm HR060 | Ø130mm HR060-NC35 |
HWP-420 DIESEL 420LPM @200bar |
| Ø165mm (6 1/2˝) | Ø165mm (6 1/2˝) | ||||
| 80WH | Ø203mm (8˝) | Ø203mm (8˝) | Ø182mm HR080 | Ø170mm HR080-NC50 (4 1/2 IF) |
HWP-1200 DIESEL 1200LPM @200bar |
| 85WH | Ø216mm (8 1/2˝) | Ø216mm (8 1/2˝) | Ø190mm HR085 | Ø178mm HR085-NC50 (4 1/2 IF) |
HWP-1200 DIESEL 1200LPM @200bar |
| 100WH | Ø254mm (10˝) | Ø254mm (10˝) | Ø225mm HR100 | Ø220mm HR100-NC50 |
HWP-1200 DIESEL×2 1200LPM @200bar |
| Ø305mm (12˝) | Ø305mm (12˝) | ||||
| 120WH | Ø305mm (12˝) | Ø305mm (12˝) | Ø280mm HR120 | Ø202mm HR120-NC50 |
HWP-1200 DIESEL×2 1200LPM @200bar |
| Ø312mm (12 1/4˝) | Ø312mm (12 1/4˝) | ||||
| Ø321mm (12 5/8˝) | Ø321mm (12 5/8˝) | ||||
| 170WH | Ø445mm (17 1/2˝) | Ø445mm (8˝) | Ø395mm HR170 | Ø380mm HR170 |
HWP-1200 DIESEL×2 1200LPM @200bar |
- Remarks
-
- WH : Water Hammer
- HR : HANJIN Remanufacturing Standard
- HWP: HANJIN Water Pump
-
- HNC : HANJIN Numbered Connections
- NC : Numbered Connections (API Pipe Standard)
- IF : Internal Flush (API Pipe Standard)
