CONSTRUCTION / SPECIAL RIGS

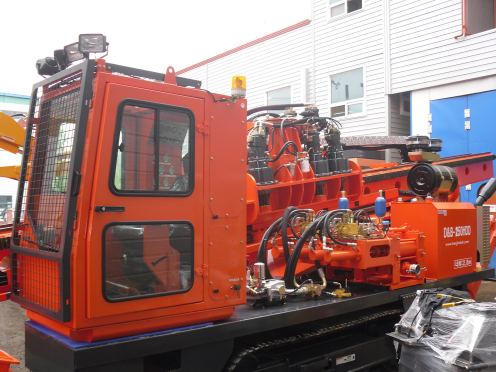

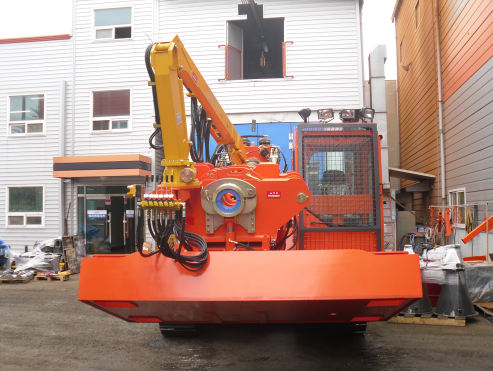

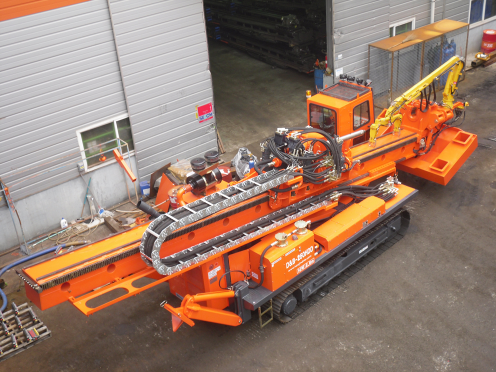

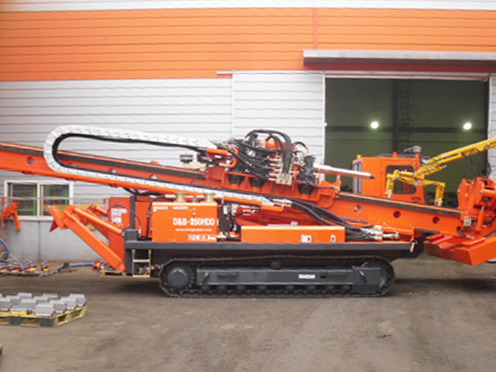

D&B-150HDD
Horizontal Directional Drilling

  • 위 이미지를 클릭하면 확대보기가 됩니다.
Model Name Engine (Basic) Max Power Pull-Up Capacity Pull-Down Capacity Rig Weight Rig Size(mm)
150HDD D6CC 120ton 120ton 19ton L : 10,200 W : 2,800 H : 2,400

01Auger

  • Good for stable working condition
  • Easy for worker

02Mud Pump

  • Full Hydraulic drive system
  • Unique D&B design & Made
  • Variable volume control

03Crane

  • Safe&Easy operation
  • Useful for Rod change
  • Easy to maintenance
  • Option

04Winch

  • Model : 5ton, 10ton
  • Powerful traction
  • Option

05Rear Jack

  • The Best design
  • Reduced Ieakage
  • Quality guarantee

06Control

  • Proportional Valve
  • Available of precision control
  • Concentrated control

07Rod Changer

  • Quick & Safe
  • Easy to maintenance
  • Option

08Rotation Head

  • Design for durability
  • Powerful Torque
  • Easy to maintenance
