WATER WELL/ SPA / GEOTHERMAL RIGS

D&B-16W
SPA & Geothermal

  • 위 이미지를 클릭하면 확대보기가 됩니다.

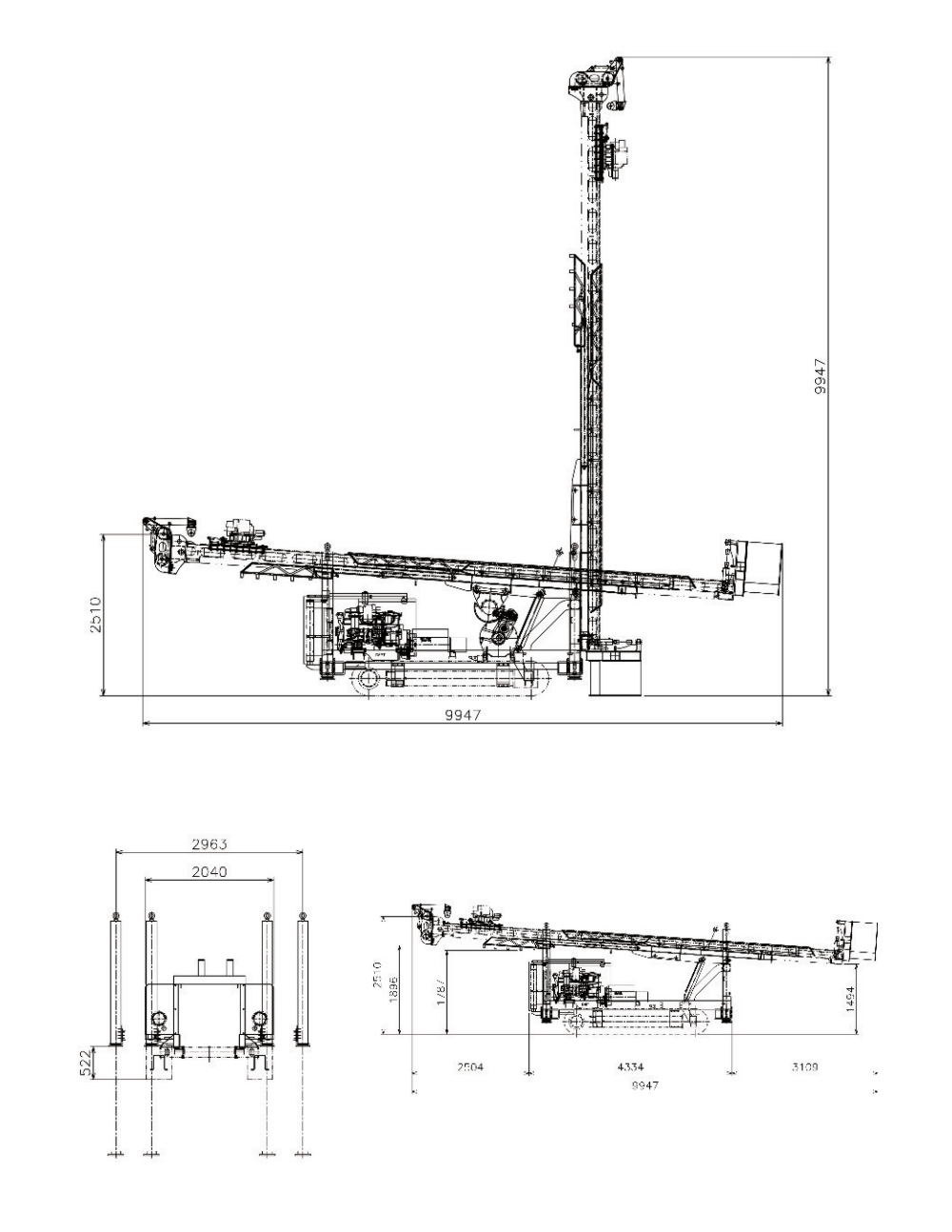

Model Name Engine (Basic) Max Power Engine Option Pull-Up Capacity Rig Weight Rig Size(mm)
16W D6GA 220 HP / 2000 RPM 16ton 12,000kg L : 8,232 W : 2,200 H : 2,513

Self Loading

Rotary Head

Compressor

Control Box

Top Winch

Wire Line

Welder

Main Hyd. Pump

Mud Pump

Welder 250 Amp.DC
Mud Pump(l/min) 200, 300, 800, 1200, 1500
Compressor(psi/cfm) 21/500, 21/750
Water Injection Pump(l/min,bar) 60/35
