WATER WELL/ SPA / GEOTHERMAL RIGS

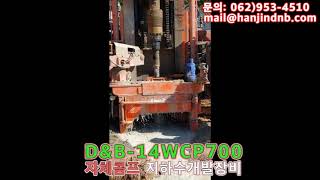

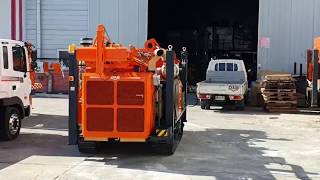

D&B-14WCP700
Water Well & SPA Drilling Rig

  • 위 이미지를 클릭하면 확대보기가 됩니다.
카달로그
:

D&B-14WCP.pdf

Model Name Engine (Basic) Max Power Engine Option Pull-Up Capacity Rig Weight Rig Size(mm)
14WCP700 DL08 285 HP / 1900 RPM 14ton 11,500kg L : 5,257 W : 2,540 H : 2,578

01Rotary Head

  • Strong rotation
  • Advanced air swivel
  • Variable speed

02Power System

  • 285ps (14WCP700)
  • 220ps (14W)
  • Engine gearbox
  • Hydraulic pump (280bar)

03Mast Sytem

  • Telescopic mast
  • Chain driven mast
  • Two cylinders
  • Long head travel

04Track System

  • Steel track
  • Crawler type

05Mud Pump(option)

  • Full hydraulic drive system
  • Variable volume
  • Low maintenance cost

06Work Plate

  • Telescopic work plate
  • Convenient make up and break out
  • Splash prevent

07Drifter(option)

  • No compressor required
  • Strong blow
  • Easy operation and maintenance

08Rod Handler

  • Stable rod control
  • Fast and efficient work
  • Hanjin's own technology

09Rod Rack (D&B-14W)

  • High carrying Capacity (50es/3m,73Φ
  • Convenient work

10Air Compressor(D&B-14WCP700)

  • Rotary screw compressor
  • High performance air end(700cfm, 20bar)
  • Easy operation

제품 구매문의

제품 구매에 대한 문의를 남겨주시면 친절하게 답해드리겠습니다.
