WATER WELL/ SPA / GEOTHERMAL RIGS

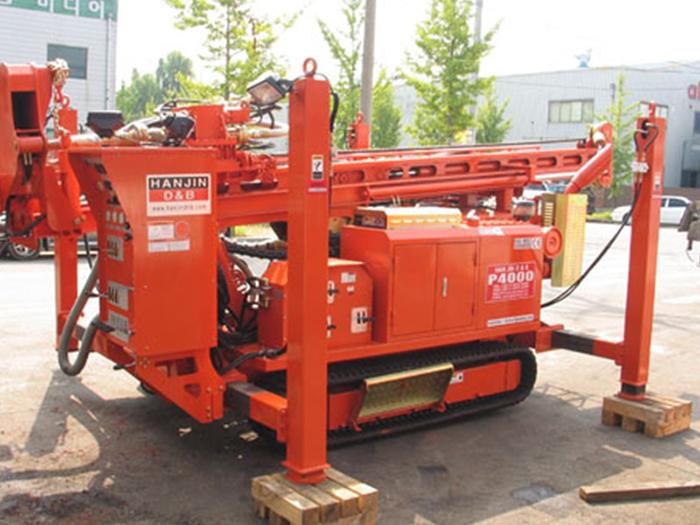

D&B-10W
Water Well Drilling Rig

  • 위 이미지를 클릭하면 확대보기가 됩니다.
카달로그
:

10D&12D.pdf

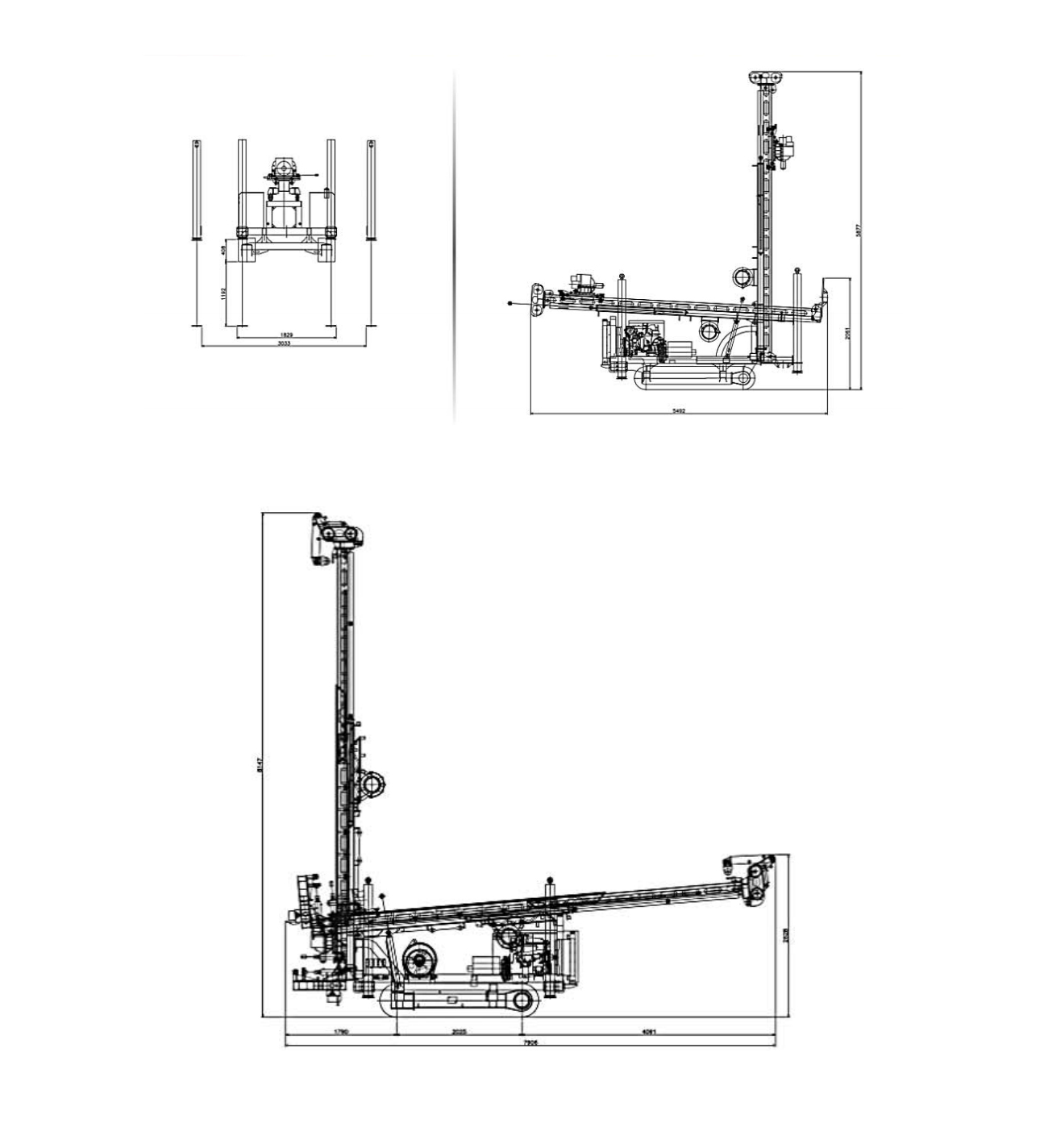

Model Name Engine (Basic) Max Power Engine Option Pull-Up Capacity Rig Weight Rig Size(mm)
10W D4DA 105 HP / 2300 RPM D4DD 10ton 5,800kg L : 6,015 W : 1,950 H : 2,450

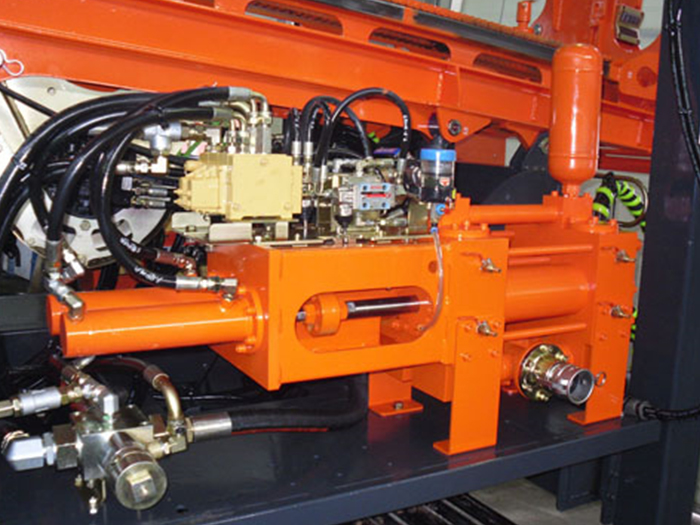

01Mud Pump

  • Full Hydraulic drive system
  • Unique D&B design&Made
  • Variable volume control
  • Low maintenance cost

02Jib Crane

  • Safe&easy operating
  • Special D&B design&Made
  • Powerful Working

03Rotary Head

  • Strong rotation power
  • Special D&B design&Made
  • Top head rotation system
  • Low maintenance cost
  • Special air swivel design

04Winch

  • Strong Power
  • Special D&B design&Made
  • Special control system

05Self Loading Jack

  • Crawler type only
  • Special D&B design&Made
  • Easy transport system

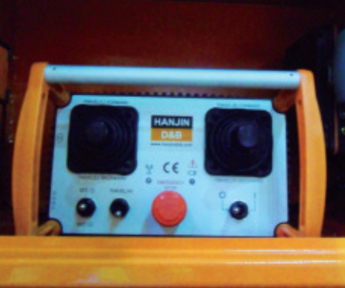

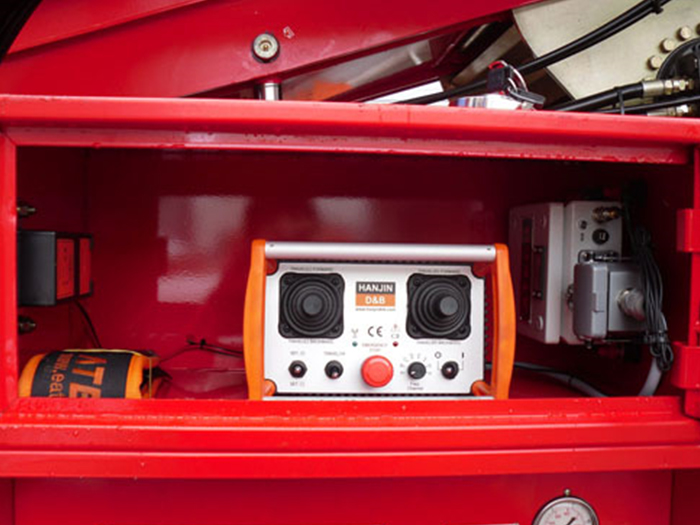

06Remote Control

  • Wire/Wireless
  • Easy & safe Drilling
  • Safe Trammin

07Rod Handler

  • Convenience of work
  • D&B's own technology
  • Effective works

08Wire Line

  • Strong Power
  • Special D&B design&Made
  • Special control system
Welder 250 Amp.DC
Compressor(psi/cfm) 350/500
Water Injection Pump(l/min,bar) 60/35
