EXPLORATION RIGS

D&B-30D
Diamond Core Drilling Rig

  • 위 이미지를 클릭하면 확대보기가 됩니다.
카달로그
:

D&B-30Multi Brochure.pdf

Model Name Engine (Basic) Max Power Engine Option Pull-Up Capacity Rig Weight Rod Size / Drilling Deth Rig Size(mm)
30D 086TI / 290 HP / 2200 RPM DL08 30ton 13,350kg P : 114.3mm 500m / H : 88.9mm 1200m
N : 69.9mm / 2000m, B : 55.6mm 2300m

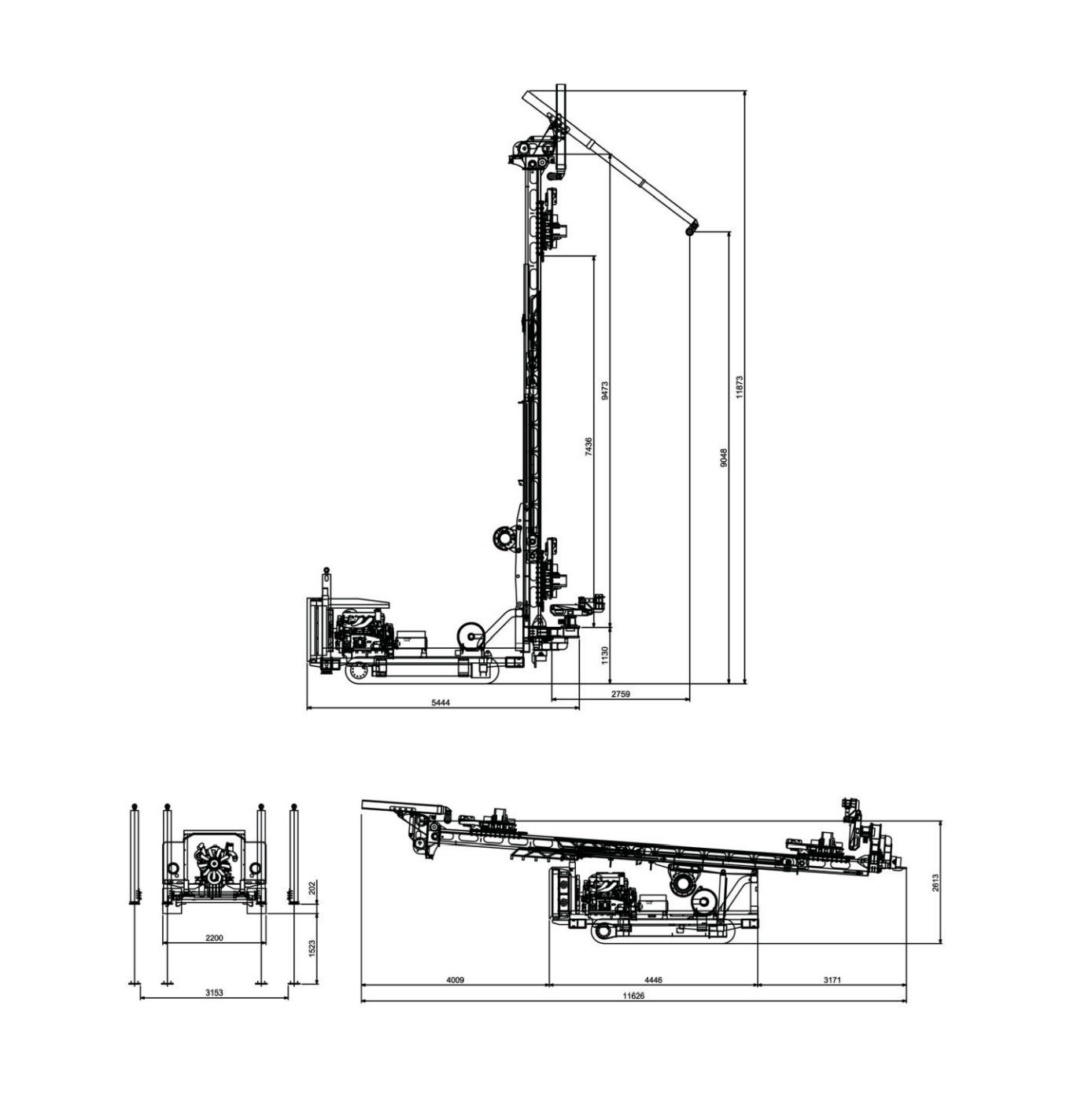

L : 11,626 / W : 2,200 / H : 3,058

01Mud Pump

  • Full Hydraulic drive system
  • Unique D&B design&Made
  • Variable volume control
  • Low maintenance cost

02Jib Crane

  • Safe&easy operating
  • Special D&B design&Made
  • Powerful Working

03Rotary Head

  • Strong rotation power
  • Special D&B design&Made
  • Top head rotation system
  • Low maintenance cost
  • Special air swivel design

04Winch

  • Strong Power
  • Special D&B design&Made
  • Special control system

05Self Loading Jack

  • Crawler type only
  • Special D&B design&Made
  • Easy transport system

06Wire Line

  • Strong Power
  • Special D&B design&Made
  • Special control system

07Rod Handler

  • Convenience of work
  • D&B's own technology
  • Effective works
Mud Pump 300 l/min, 800 l/min, 1200 l/min, 1500 l/min
Water Injection Pump 60 l/min, 35bar
Welder 250 Amp.DC
Remote control for tramming Wireless
