EXPLORATION RIGS

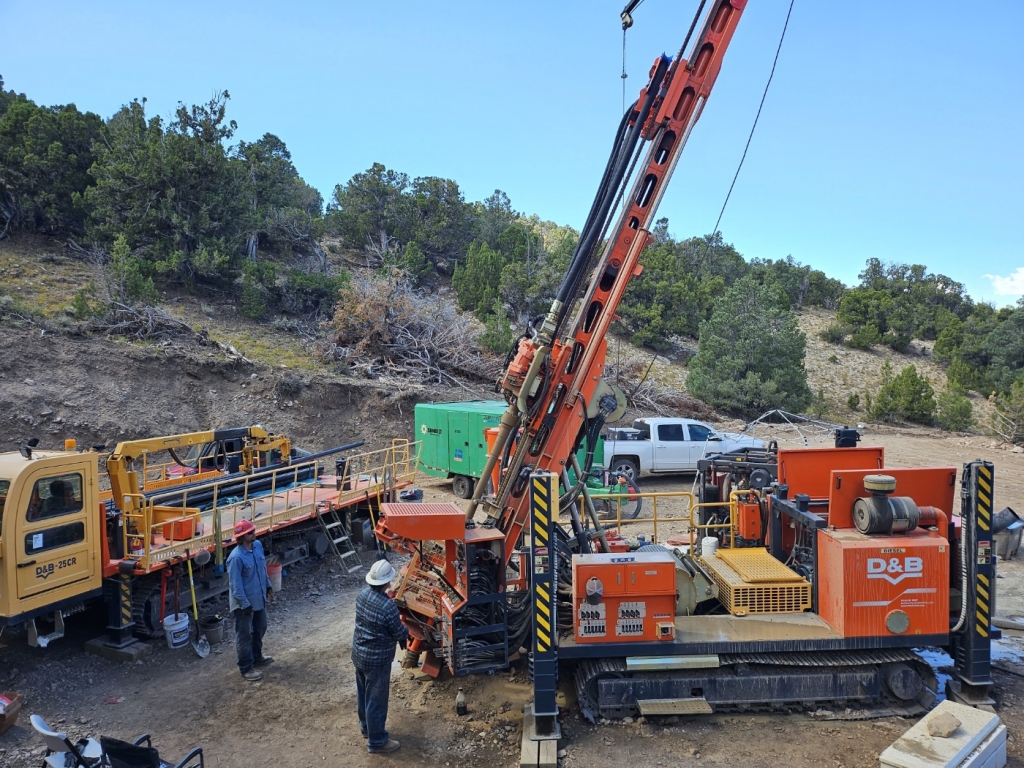

D&B-35M
Multi(Core) Drilling Rig

  • 위 이미지를 클릭하면 확대보기가 됩니다.
카달로그
:

D&B-35Multi Brochure.pdf

Model Name Engine (Basic) Max Power Engine Option Pull-Up Capacity Rig Weight Rod Size / Drilling Deth Rig Size(mm)
35M 086TI 290 HP / 1900 RPM DL08 30ton 21,217kg P : 114.3mm 500m, H : 88.9mm 1200m
N : 69.9mm 2000m B : 55.6mm 2500m

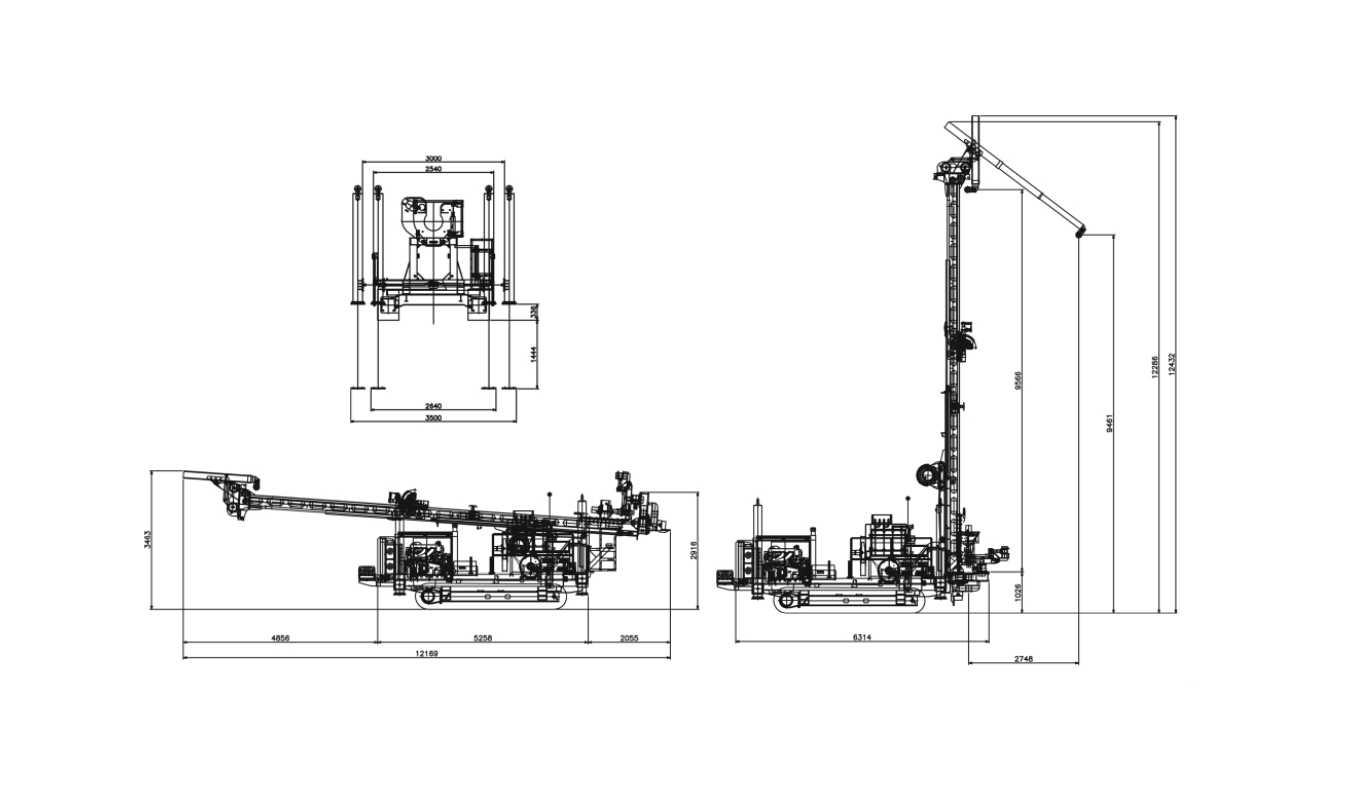

L : 12,169 W : 3,500 H : 12,432

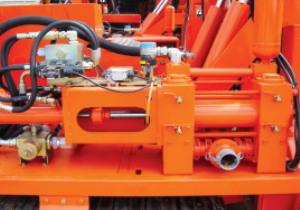

01Mud Pump

  • Full Hydraulic drive system
  • Unique D&B design&Made
  • Variable volume control
  • Low maintenance cost

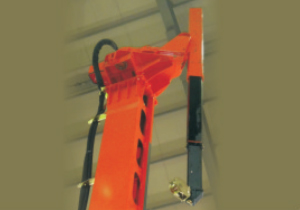

02Jib Crane

  • Safe&easy operating
  • Special D&B design&Made
  • Powerful Working

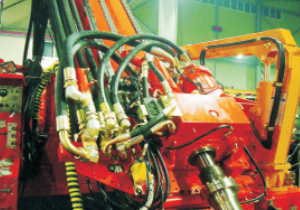

03Rotary Head

  • Strong rotation power
  • Special D&B design&Made
  • Top head rotation system
  • Low maintenance cost
  • Special air swivel design

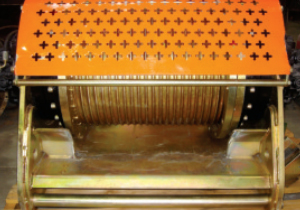

04Winch

  • Strong Power
  • Special D&B design&Made
  • Special control system

05Self Loading Jack

  • Crawler type only
  • Special D&B design&Made
  • Easy transport system

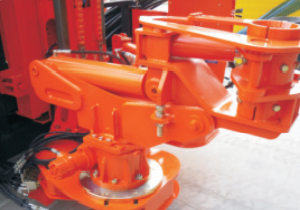

06Rod Handler

  • Convenience of work
  • D&B's own technology
  • Effective works

07Wire Line

  • Strong Power
  • Special D&B design&Made
  • Special control system
Compressor 350psi 1070cfm
Mud Pump D&B-300MP/ D&B-FMC Pump
Welder 250 Amp.DC
