EXPLORATION RIGS

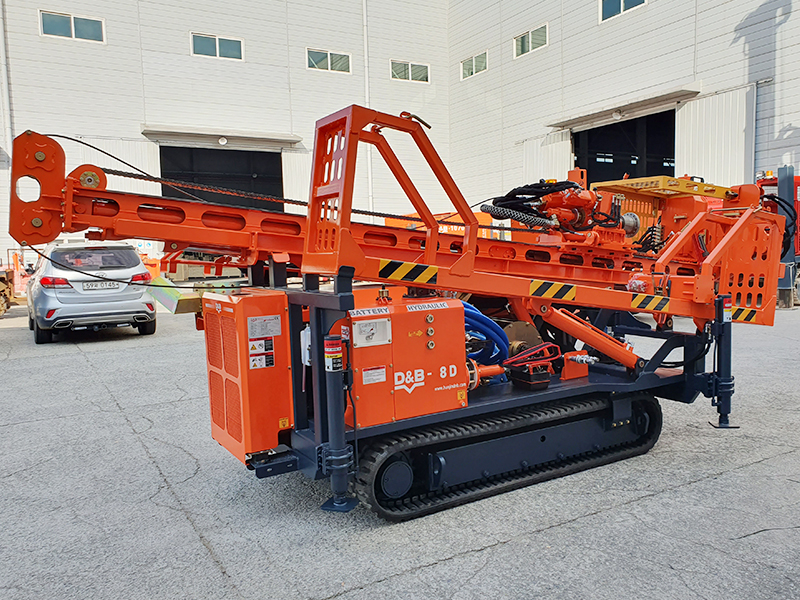

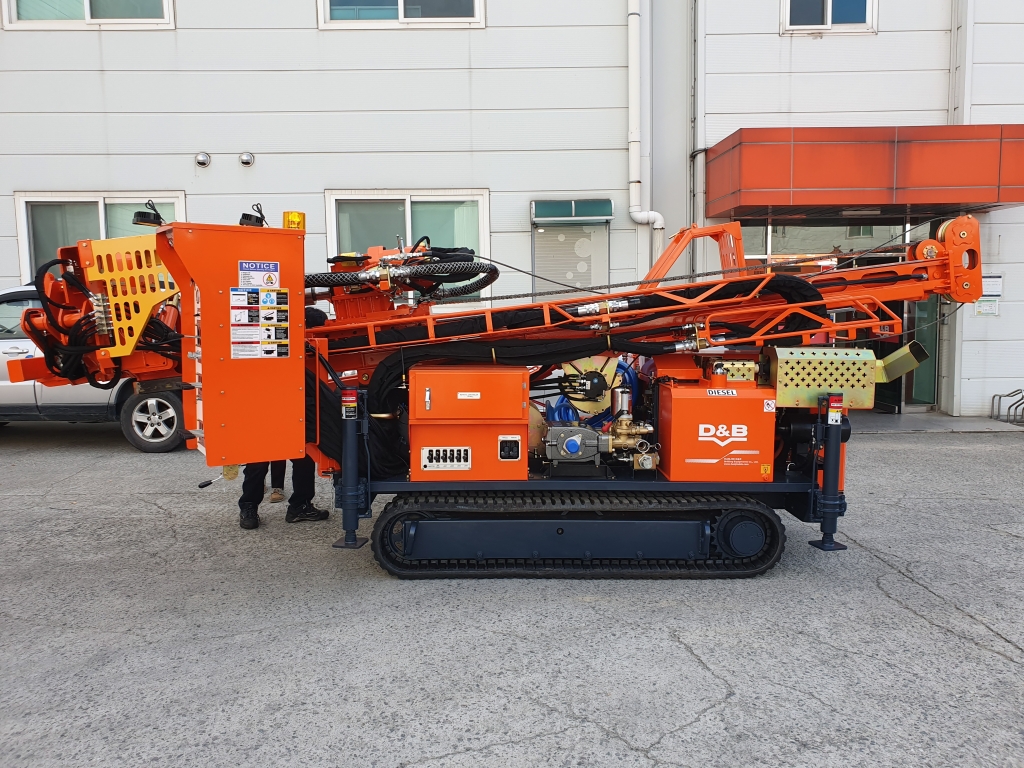

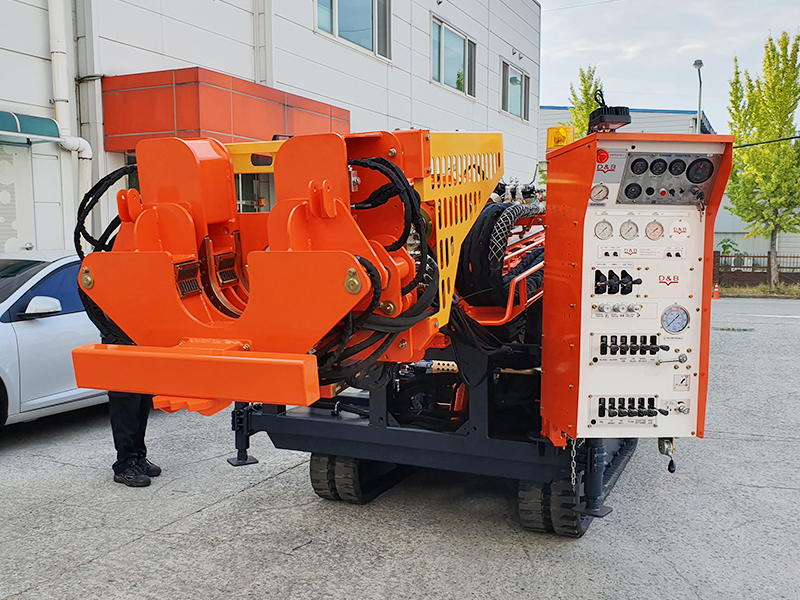

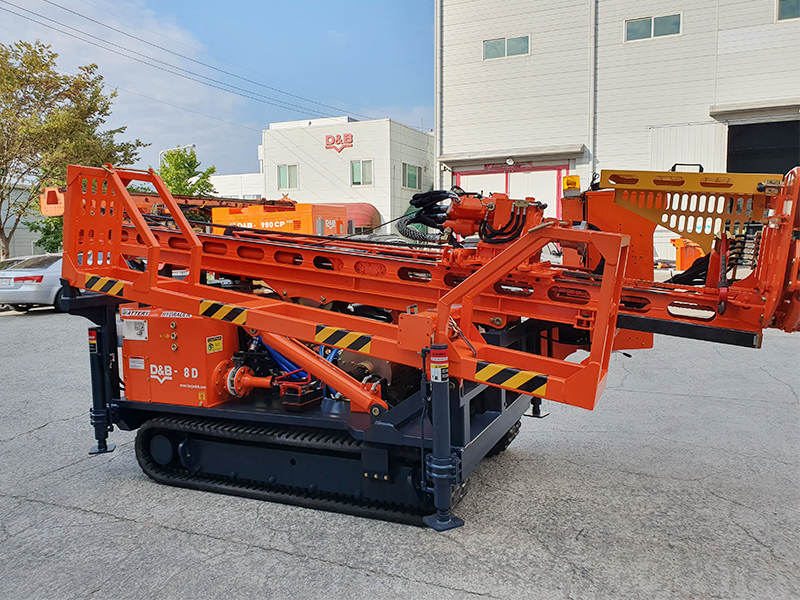

D&B-8D
Diamond Core Drilling Rig
Diamond Core Drilling Rig
| Model Name | Engine (Basic) Max Power | Pull-Up Capacity | Rig Weight | Rig Size(mm) |
|---|---|---|---|---|
| 8D | D4BB 64 HP / 2500 RPM | 8ton | 3,500kg | L : 5,328 W : 1,705 H : 5,379 |
01Rotary Head
- Strong rotation
- Special HANJIN Design&made
02Rubber Track
- Rubber Track
03Water Injection Pump
- Full Hyd.system
- Volume control
04Engine
- Daedong D2300T
- 54HP/1800RPM
05Rod Rack
- 73mm x 3M x 32ea
06Control Box
- Full Hyd.system
- Easy to control
- Easy to maintenance
| Welder | 250 Amp.DC |
|---|---|
| Inverter | 4.5kw |
| Remote control for tramming | wireless |
