WATER WELL/ SPA / GEOTHERMAL RIGS

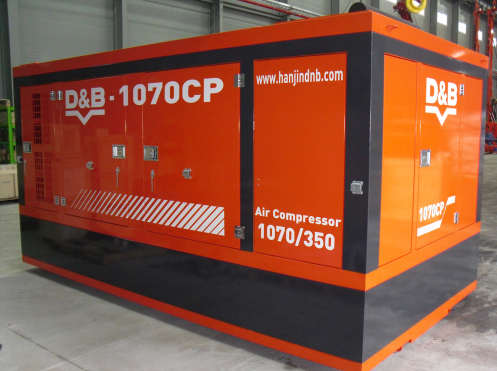

D&B-1070CP
Air Compressor

  • 위 이미지를 클릭하면 확대보기가 됩니다.
카달로그
:

D&B-Compressor.pdf

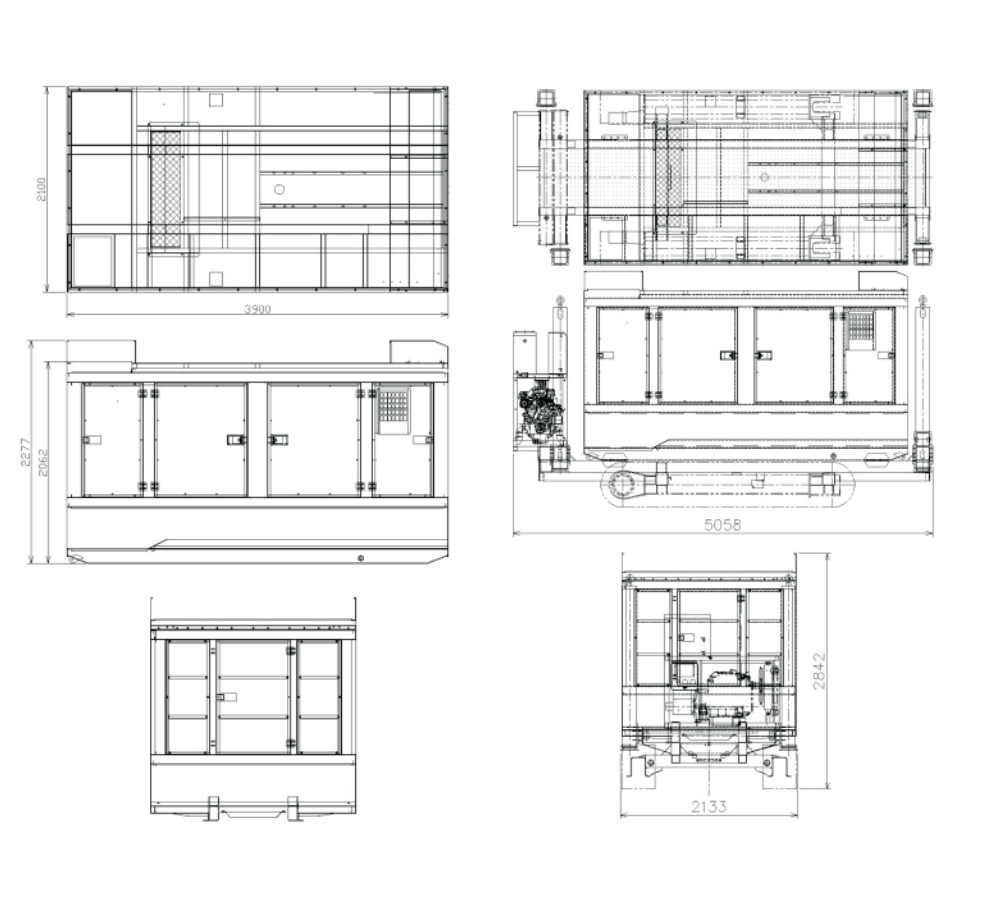

Model Name Capacity(RPM) Capacity(PSI) Engine (Basic) Max Power Weight Size(m)
1070CP 980cfm 350psi(27bar) D6CC 540 HP / 1800 RPM 6.8ton L : 4.6 W : 2.1 H : 2.1

01Engine

  • HYUNDAID6CC
  • 540HP/1800RPM
  • Direct Injection
  • EURO 4 Engine

02Air End(Elgi)

  • 980/1070/1020CFM/350PSI
  • Capacity control
  • Durability

03Air End(HR2.0/HR2.5/CF1000H)

  • 953CFM/1236CFM/262PSI
  • 1020CFM/500PSI

04Self-loading&Crawler

  • 4Jack&4outriggers
  • Easy to load on truck
  • Option
  • Doosan Solar55
  • Steel Track
  • Easy to transport

05Precision

  • The Best design
  • Reduced Ieakage
  • Quality guarantee

06Durable gear

  • Direct drive system
  • Low noise
  • Good Durability

07Remote control

  • Remote control system
  • Easy to transport
  • Option

08Control

  • Concentration
  • Easy to control
  • Easy to maintenance
